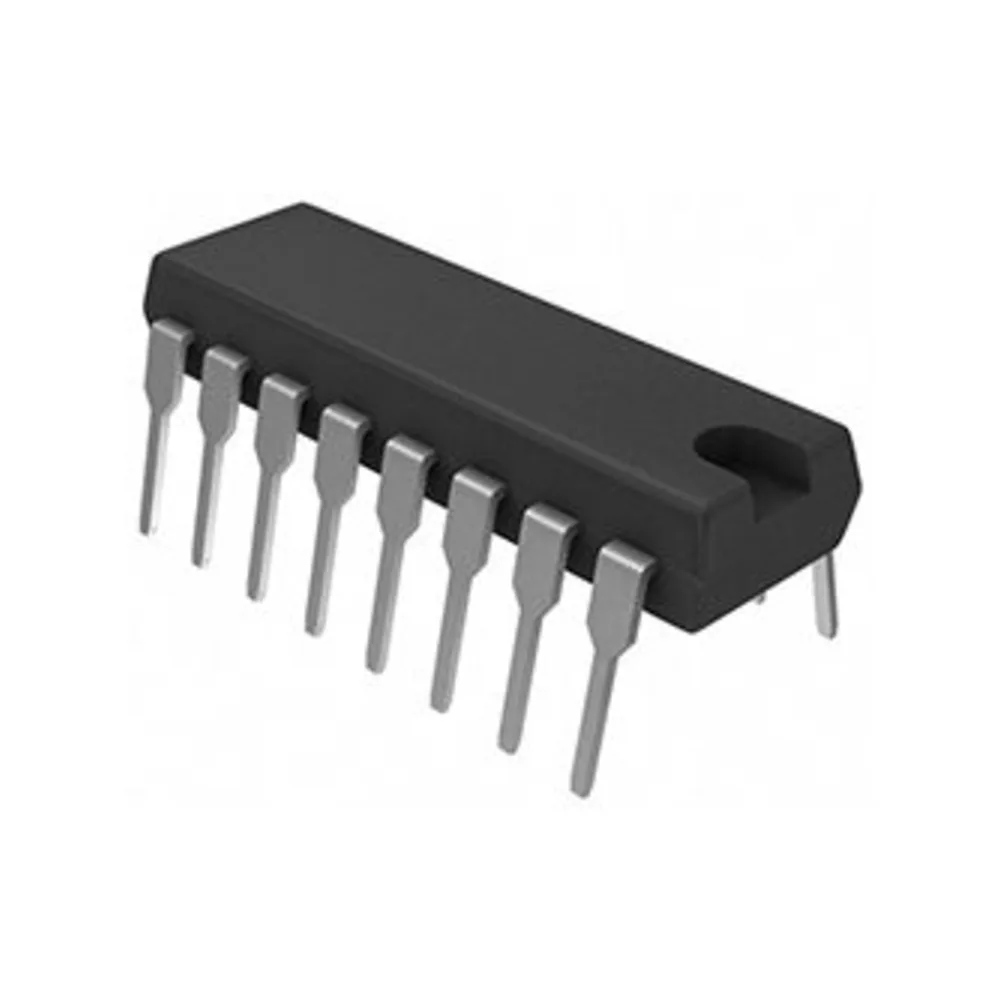

4514 4-to-16 Line Decoder with Latch

A CD4514 CMOS integrated circuit providing a 4-to-16 line decoder with input latch. Decodes a 4-bit input to one of sixteen outputs, with a latch to hold the selection. Used for address decoding and driving indicator arrays. Being 4000-series CMOS it runs on anything from 3 to 18 volts, which makes it far more flexible than 5V-only TTL logic and lets it work directly in battery and higher voltage circuits. It also draws almost no current when idle. The trade-off is speed: CMOS of this family is slower than 74HC logic, so it suits control, timing and teaching applications rather than fast data paths. Unused inputs must be tied to a supply rail, never left floating. Wide 3-18V supply range, unlike 5V-only TTL; Extremely low quiescent current suits battery circuits; High noise immunity from the wide logic swing; Standard 24-pin DIP fits breadboards and sockets
