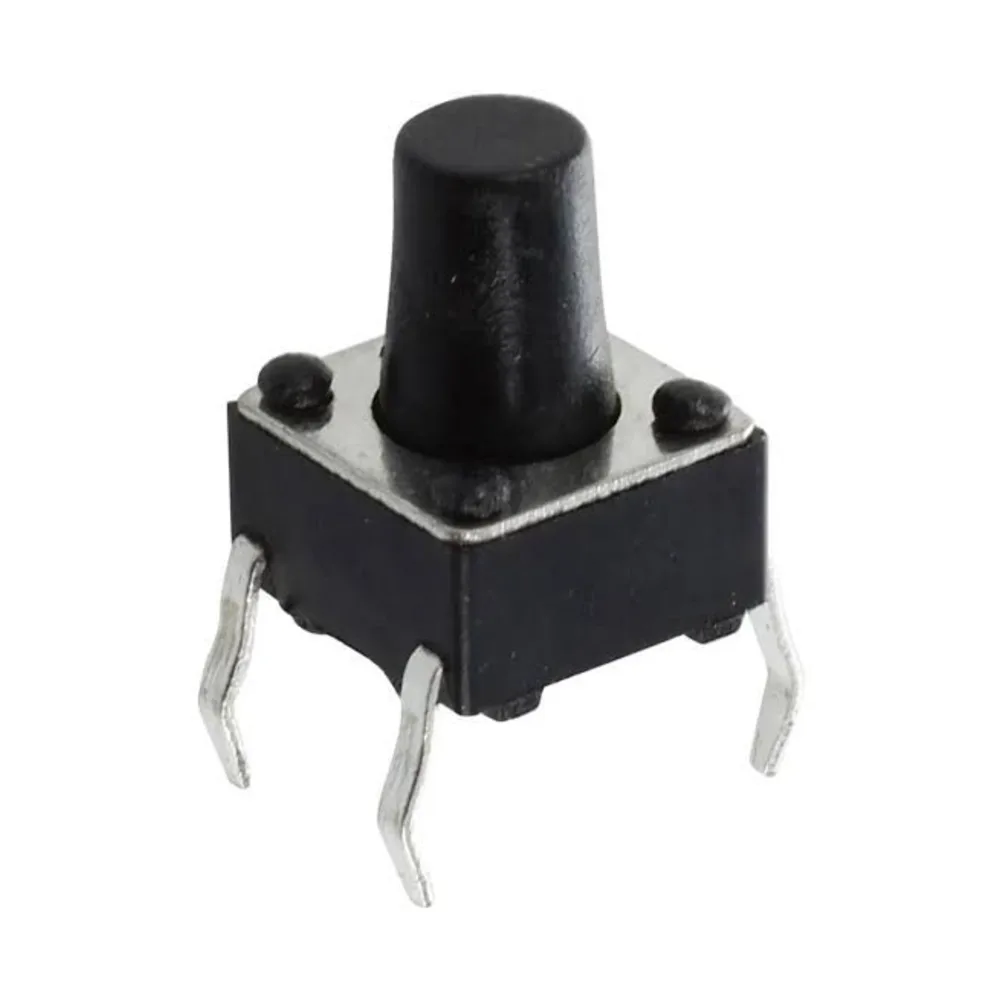

Push Button 4Pin 6x6x7

A momentary tactile switch on the standard 6 x 6 mm footprint with a 7 mm actuator height. The height is the only thing that varies across this range and it is chosen to match your enclosure: the button must protrude far enough through the panel to be pressed, but not so far that it is held down when the case closes. Measure from the PCB surface to the outside of the panel and pick the nearest height above that. The four pins are two pairs internally connected, which gives mechanical stability rather than four separate contacts. 7 mm actuator height for panel matching; Standard 6 x 6 mm footprint fits common layouts; Four pins give solid mechanical mounting; Crisp tactile feedback confirms the press
