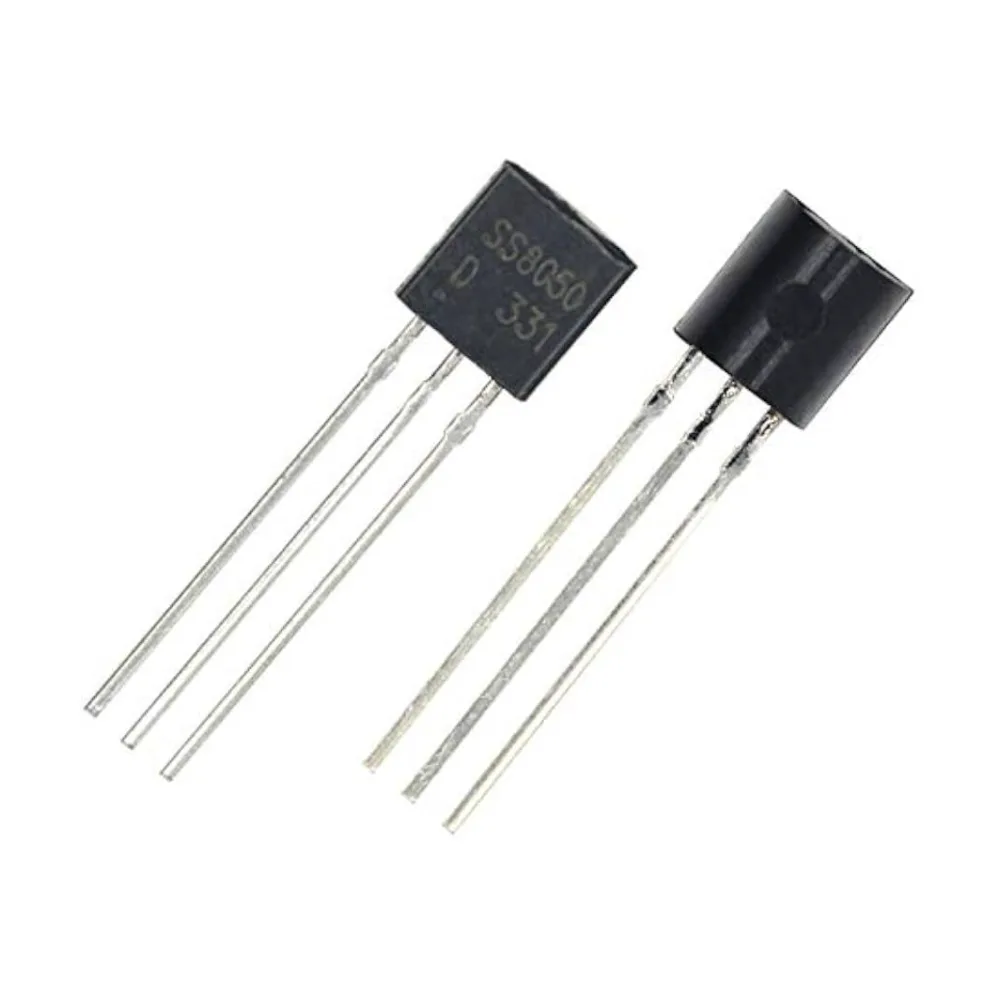

S8050 Low Voltage, High-Current NPN Small-Signal Transistor

A NPN bipolar junction transistor rated at 25V collector-emitter and 700 mA collector current, used for switching moderate loads such as small relays and LED arrays, where a 100 mA transistor would be insufficient. As a NPN device it sinks current to ground when its base is driven high. Always fit a base resistor when driving it from a microcontroller pin - connecting a base directly to a logic output will damage both. A common starting value is 1K for switching applications. 25V and 700 mA rating suits moderate loads; TO-92 through-hole package fits breadboards; Very low cost and widely documented; Standard pinout for the S8050 family
