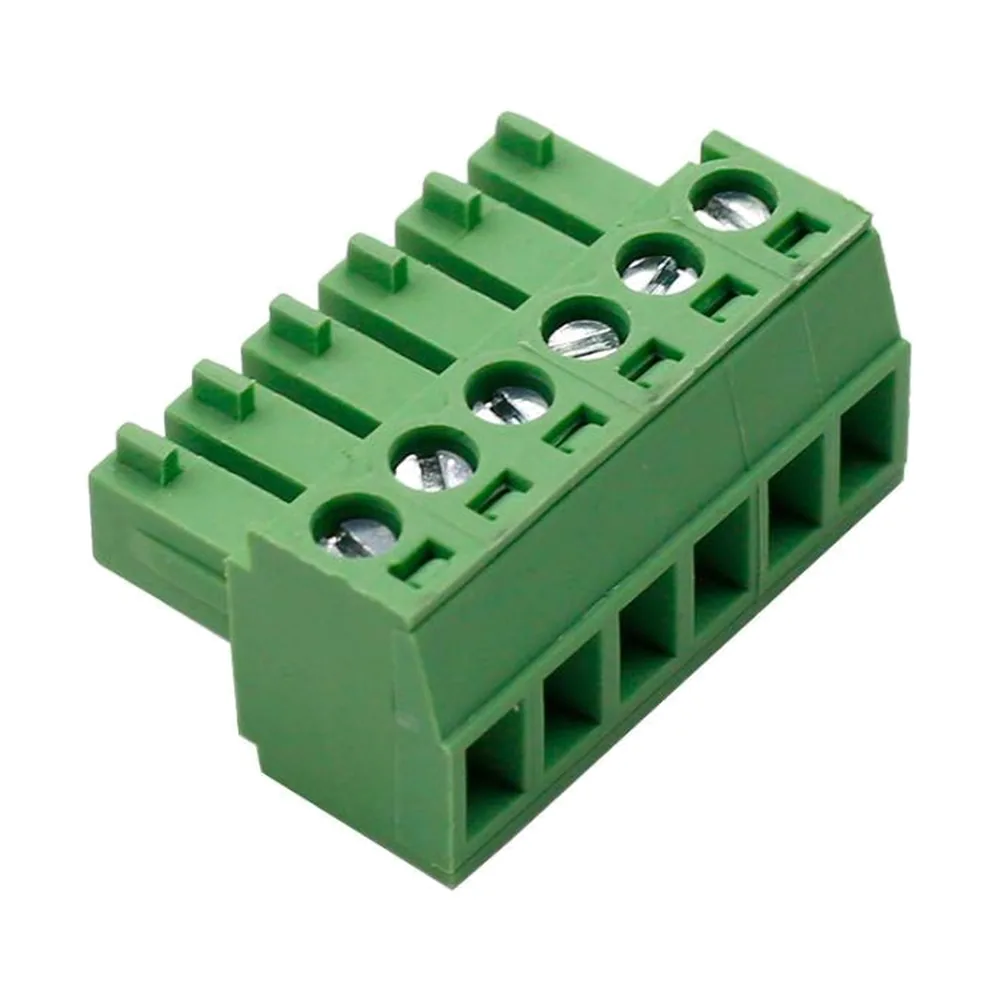

Screw Terminal - KF2EDGK - 3.81mm 6Pin

A 6-way pluggable terminal block in the KF2EDGK series. The important feature is that it separates into two halves: field wiring is screwed into a removable plug, which then pushes onto a header soldered to the PCB. That means a board can be swapped out for service without disturbing any of the wiring, and wiring can be prepared on the bench before installation. The 3.81 mm pitch gives a compact footprint for higher way counts. Pluggable design allows board removal without rewiring; 6 independent screw connections; Compact 3.81 mm pitch saves board space; Keyed to prevent incorrect reconnection
