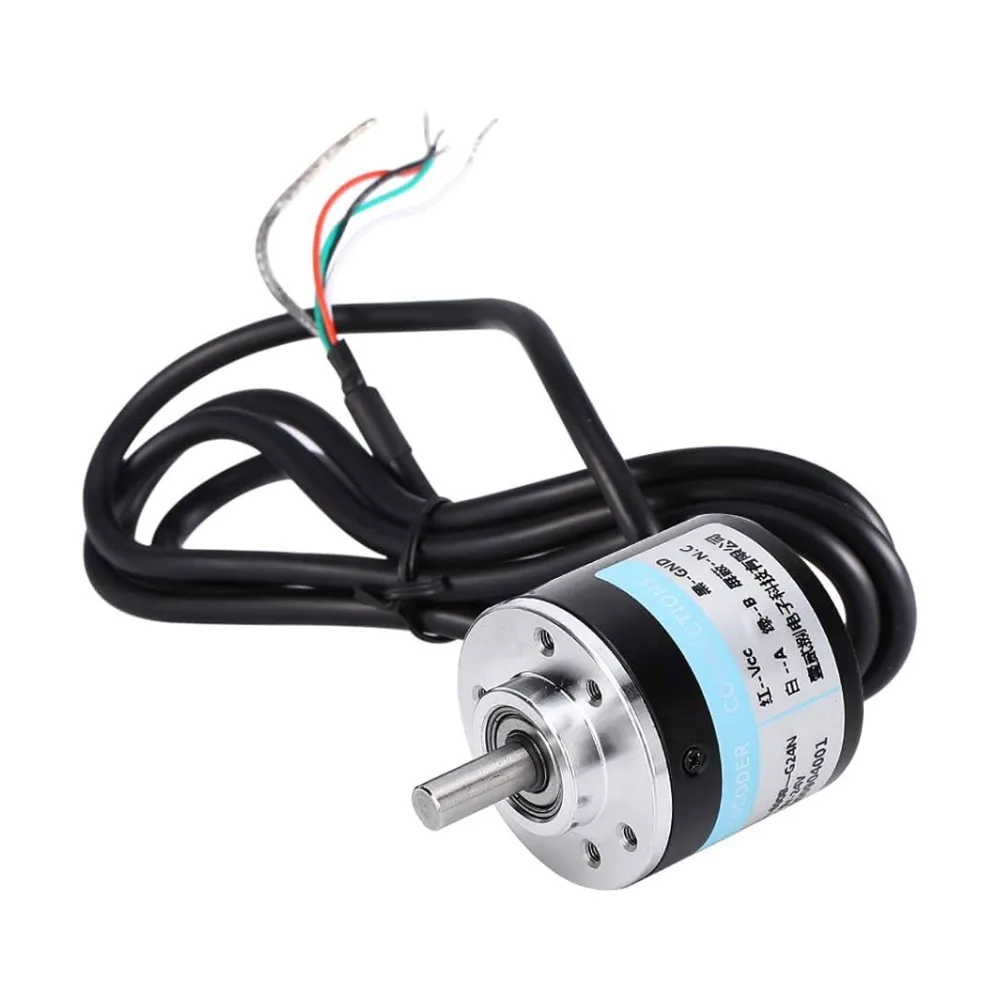

Solid Shaft DC5-24V Incremental Photoelectric Rotary Encoder NPN Open Collector D8MM 600 Pulse
Incremental optical rotary encoder, 600 PPR, 8 mm shaft, NPN open collector
An industrial incremental encoder that reports shaft rotation as electrical pulses, for position feedback, speed measurement and length counting on machinery. At 600 pulses per revolution it resolves roughly 0.6 degrees per pulse in single-edge counting, or four times finer if you decode all quadrature edges. A good general-purpose resolution on the heavier 8 mm shaft, balancing positional detail against pulse rate at speed. The NPN open collector output needs a pull-up resistor to your logic supply, and because it is incremental rather than absolute, position is lost at power-off and must be re-referenced against a home switch. Optical sensing with no contact wear; NPN open collector output suits PLCs and microcontrollers; Quadrature A/B output gives direction as well as count; Rugged metal housing for machine mounting
Highlights
Incremental optical rotary encoder, 600 PPR, 8 mm shaft, NPN open collector
